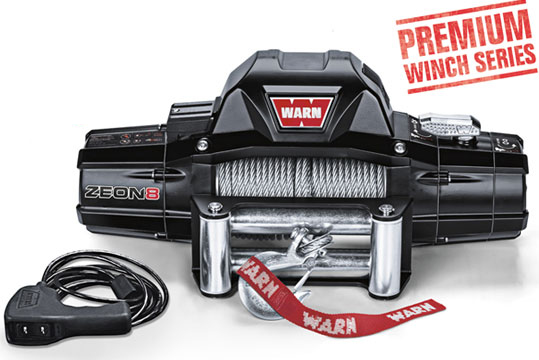

Warn ZEON 8 Winch
Advanced, capable, and strong
Don't let the good looks fool you. We've packed the ZEON 8 winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
Features:
- 8,000 lb. (3630 kg) single-line pulling capacity
- 100' of durable 5/16" galvanized steel wire rope
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 8 SPECS/PART NUMBER |
| Part number: 88980 |
| Rated line pull: 8000 lbs. (3630 kg) single-line |
| Motor: 12V DC, series wound |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-stage planetary |
| Gear ratio: 162:1 |
| Clutch (freespooling): Rotating ring gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.15"/9.0" (80mm/229mm) |
| Weight (kit shipping): 94 lbs. (42 kg) |
| Rope: 5/16" x 100' (8mm x 30.5m) steel |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 25mm gauge, 72" (1.83m) |
| Finish: Satin-black powder coat |
| Warranty: Limited lifetime |
12V DC PERFORMANCE SPECS |
|||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 35 (12.8) | 63 amps | 1/8000 (3629) |
| 2000 (910) | 17.2 (5.2) | 167 amps | 2/6777 (3074) |
| 4000 (1810) | 11.7 (3.6) | 255 amps | 3/5878 (2666) |
| 6000 (2720) | 8.5 (2.6) | 335 amps | 4/5189 (2353) |
| 8000 (3630) | 6.2 (1.9) | 413 amps | |
Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H (615.9mm L x 181.6mm D x 267.1mm H) Low-profile configuration: 24.25" L x 7.15" D x 7.84" H (615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
