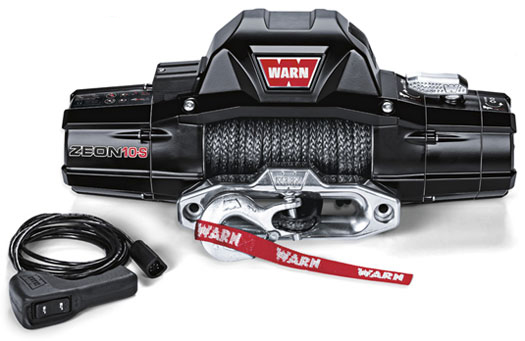

Warn ZEON 10-S Winch
10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
Features:
- 10,000 lb. (4536 kg) single-line pulling capacity.
- Includes 100' of 3/8" WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a matte aluminum hawse fairlead
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
- Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 10 SPECS/PART NUMBER |
| Part number: 88990 (12V) |
| Rated line pull: 10,000 lbs. (4536 kg) single-line |
| Motor: series wound, 12V DC, 24V DC |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-stage planetary |
| Gear ratio: 216:1 |
| Clutch (freespooling): Rotating ring gear |
| Brake: Automatic mechanical cone |
| Drum diameter/Length: 3.15"/9.0" (80mm/229mm) |
| Weight (kit shipping): 98 lbs. (44 kg) |
| Rope: 3/8" x 80' (9.52mm x 24.38m) steel |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72" (1.83m) |
| Finish: Satin-black powder coat |
| Warranty: Limited lifetime |
12V DC PERFORMANCE SPECS |
|||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 33 (10.27) | 62 amps | 1/10000 (4536) |
| 2000 (910) | 14.9 (4.5) | 144 amps | 2/8245 (3740) |
| 4000 (1810) | 11.2 (3.4) | 215 amps | 3/7014 (3181) |
| 6000 (2720) | 8.5 (2.6) | 280 amps | 4/6103 (2768) |
| 8000 (3630) | 6.5 (2.0) | 353 amps | |
| 10000 (4536) | 4.8 (1.5) | 409 amps | |
Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H (615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H (615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
