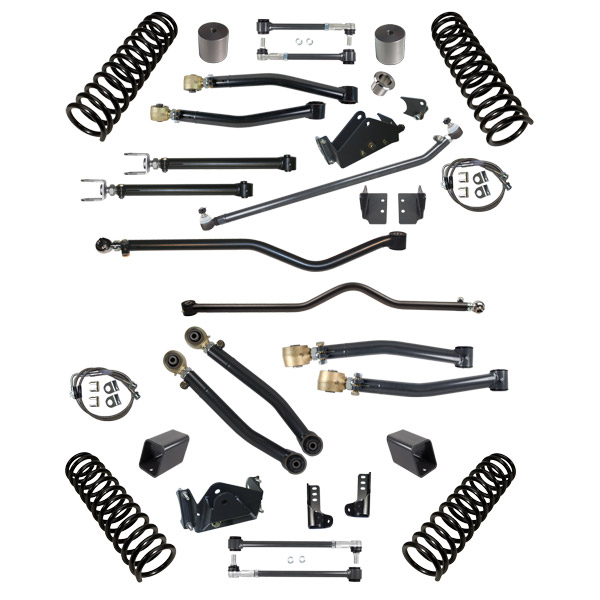

Synergy Jeep JK Stage 3 Suspension System, 4/4.5" Lift
The 4/4.5" Stage 3 System includes all the components from the Stage 2 System but exchanges the Fixed Length Lower Control Arms for Adjustable Lower Control Arms (8051, 8052) and adds Adjustable Upper Control Arms (8053, 8054) front and rear. The Adjustable Control Arms are required for locating the front/rear axles with lift heights over 3" & for adjusting the pinion angles when using aftermarket 1310-1350 drive shafts. This system also adds Front and Rear Adjustable Track Bars for centering the axles under the vehicle at the increased ride height. This system will fit 37" tires with stock fenders or 40" tires with high fenders.
Features:
- Stage 3 key features are front and rear track bar relocation brackets, flipped drag link, and adjustable upper and lower control arms
- Front and rear bump stop extension kits
- Front and rear sway bar links
- Front and rear extended stainless steel braided brake lines
- Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
- Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
- Lower control arms manufactured from high quality crush resistant 1-3/4" X .188" Wall 1026 DOM tubing to increase durability and correct caster
- Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
- Adjustable Control arms incorporate the tried and true Currie Enterprises Johnny Joints® for paramount performance & durability
- Front and rear lower shock mounts
- Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle
- Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
- Suspension components feature an abrasive-resistant powder coat finish for maximum durability and corrosion resistance
- 100% bolt on components assure an easy, trouble free installation with the use of basic hand tools
- Requires a maximum 4-3/4" backspace wheel or wheel spacer with factory wheel setup. 4-1/2" back spacing is recommended
- Synergy suspension systems are a modular design so all components are available separately
- Available For Right Hand Drive (RHD) Vehicles
Kit Numbers:
| Part # | Description |
|---|---|
| 8023-40 | JK 2-Door 4" Lift Stage 3 Kit (Fits 37" Tires, 40" with High Fenders) |
| 8043-45 | JK 4-Door 4.5" Lift Stage 3 Kit (Fits 37" Tires, 40" with High Fenders) |
| 8023-40-RHD | JK 2-Door 4" Lift Stage 3 Kit (RHD) (Fits 37" Tires, 40" with High Fenders) |
| 8043-45-RHD | JK 4-Door 4.5" Lift Stage 3 Kit (RHD) (Fits 37" Tires, 40" with High Fenders) |
8023-40 - JK 2-Door Lift Stage 3 Kit:
| Qty | Part # | Description |
|---|---|---|
| 1 | 8058-40 | 4" Rear Bump Stop Spacers |
| 1 | 8063-30 | 4" Front Coil Springs |
| 1 | 8064-30 | 4" Rear Coil Springs |
| 1 | 8057-40 | 4" Front Bump Stop Spacers |
| 1 | 8059 | Front Sway Bar Links |
| 1 | 8060 | Rear Sway Bar Links |
| 2 | 8066 | Front/Rear Brake Line Kit |
| 1 | 8056 | Rear Track Bar Bracket |
| 1 | 8062 | Rear Track Bar |
| 1 | 8055 | Front Track Bar Bracket |
| 1 | 8075 | Front Track Bar |
| 1 | 8001 | Drag Link |
| 1 | 8001-03-01 | Flip Adapter |
| 1 | 8051 | Adj Front Lower Control Arms |
| 1 | 8052 | Adj Rear Lower Control Arms |
| 1 | 8053 | Adj Front Upper Control Arms |
| 1 | 8054 | Adj Rear Upper Control Arms |
| 1 | 8074 | Rear Lower Shock Mounts |
| 1 | 8073 | Front Lower Shock Mounts |
| 1 | 8097 | Rear Coil Wedges |
8043-45 - JK 4-Door Lift Stage 3 Kit:
| Qty | Part # | Description |
|---|---|---|
| 1 | 8058-40 | 4" Rear Bump Stop Spacers |
| 1 | 8063-45 | 4.5" Front Coil Springs |
| 1 | 8064-45 | 4.5" Rear Coil Springs |
| 1 | 8057-40 | 4" Front Bump Stop Spacers |
| 1 | 8059 | Front Sway Bar Links |
| 1 | 8060 | Rear Sway Bar Links |
| 2 | 8066 | Front/Rear Brake Line Kit |
| 1 | 8056 | Rear Track Bar Bracket |
| 1 | 8062 | Rear Track Bar |
| 1 | 8055 | Front Track Bar Bracket |
| 1 | 8075 | Front Track Bar |
| 1 | 8001 | Drag Link |
| 1 | 8001-03-01 | Flip Adapter |
| 1 | 8051 | Adj Front Lower Control Arms |
| 1 | 8052 | Adj Rear Lower Control Arms |
| 1 | 8053 | Adj Front Upper Control Arms |
| 1 | 8054 | Adj Rear Upper Control Arms |
| 1 | 8074 | Rear Lower Shock Mounts |
| 1 | 8073 | Front Lower Shock Mounts |
| 1 | 8097 | Rear Coil Wedges |
8023-40-RHD - 2-Door Right Hand Drive JK Kit Contents:
| Qty | Part # | Description |
|---|---|---|
| 1 | 8058-40 | 4" Rear Bump Stop Spacers |
| 1 | 8063-30 | 4" Front Coil Springs |
| 1 | 8064-30 | 4" Rear Coil Springs |
| 1 | 8057-40 | 4" Front Bump Stop Spacers |
| 1 | 8059 | Front Sway Bar Links |
| 1 | 8060 | Rear Sway Bar Links |
| 2 | 8066 | Front/Rear Brake Line Kit |
| 1 | 8056-RHD | Rear Track Bar Bracket (RHD) |
| 1 | 8068 | Rear Track Bar (RHD) |
| 1 | 8091 | Front Track Bar Bracket (RHD) |
| 1 | 8087 | Front Track Bar (RHD) |
| 1 | 8001 | Drag Link |
| 1 | 8001-03-01 | Flip Adapter |
| 1 | 8051 | Adj Front Lower Control Arms |
| 1 | 8052 | Adj Rear Lower Control Arms |
| 1 | 8053 | Adj Front Upper Control Arms |
| 1 | 8054 | Adj Rear Upper Control Arms |
| 1 | 8074 | Rear Lower Shock Mounts |
| 1 | 8073 | Front Lower Shock Mounts |
| 1 | 8097 | Rear Coil Wedges |
8043-45 -RHD - 4-Door Right Hand Drive JK Kit Contents:
| Qty | Part # | Description |
|---|---|---|
| 1 | 8058-40 | 4" Rear Bump Stop Spacers |
| 1 | 8063-45 | 4.5" Front Coil Springs |
| 1 | 8064-45 | 4.5" Rear Coil Springs |
| 1 | 8057-40 | 4" Front Bump Stop Spacers |
| 1 | 8059 | Front Sway Bar Links |
| 1 | 8060 | Rear Sway Bar Links |
| 2 | 8066 | Front/Rear Brake Line Kit |
| 1 | 8056-RHD | Rear Track Bar Bracket (RHD) |
| 1 | 8068 | Rear Track Bar (RHD) |
| 1 | 8091 | Front Track Bar Bracket (RHD) |
| 1 | 8087 | Front Track Bar (RHD) |
| 1 | 8001 | Drag Link |
| 1 | 8001-03-01 | Flip Adapter |
| 1 | 8051 | Adj Front Lower Control Arms |
| 1 | 8052 | Adj Rear Lower Control Arms |
| 1 | 8053 | Adj Front Upper Control Arms |
| 1 | 8054 | Adj Rear Upper Control Arms |
| 1 | 8074 | Rear Lower Shock Mounts |
| 1 | 8073 | Front Lower Shock Mounts |
| 1 | 8097 | Rear Coil Wedges |
Notes:
- 2012+ JK's lifted over 2" will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
- 3" and up lifts, aftermarket driveshafts are recommended
- Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, winches, & tire carriers. More lift will occur on vehicles in stock trim.
- Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
- Requires 16" or larger wheel diameter
- RHD = Right Hand Drive
Shock Options:
-
Fox Performance Series IFP Set
(2) FOX-980-24-887
(2) FOX-980-24-888 -
Fox Performance Series Remote Reservoir Set
(2) FOX-985-24-015
(2) FOX-985-24-016 -
Fox Performance Series Remote Reservoir Set With C/D Adjuster
(2) FOX-985-26-015
(2) FOX-985-26-016 -
Fox Factory Series 2.5" Remote Reservoir Set
(2) FOX-883-24-015
(2) FOX-883-24-016 -
Fox Factory Series 2.5" Remote Reservoir Set With DSC Adjuster
(2) FOX-883-26-015
(2) FOX-883-26-016 -
Fox Factory Series 2.5" Internal Bypass Reservoir Set
(2) FOX-883-02-068
(2) FOX-883-02-069 -
Fox Factory Series 2.5" Internal Bypass Reservoir Set With DSC Adjuster
(2) FOX-883-06-068
(2) FOX-883-06-069
Recommended Components:
- (1) 8002 - Synergy Chromoly Tie Rod
- (1) 8007-03 - Fox Hi-Mount Stabilizer Kit
- (1) 8001-02-02 7/8" Drill Bit for TRE Adapter
- (1) 8077 - Synergy Sway Bar Disconnect Mount Hardware
- (1) 5017 - 2012+ Exhaust Spacer
