Rock Krawler 5.5" Triple Threat Long Arm - Stage 1 (4dr)
The 5.5 Triple Threat system features a front end design that can function as a full 4 link for high speed fun in the sand or the extremely flexy independent 3 link for extreme trail use! The best part is you get to choose! All Rock Krawler upper control arms are full length! No short or mid length upper control arms with compromised geometry. Our geometry is perfect in every way. Our high clearance lower control arms are made of 2" tubular steel and use 1.25" shank Monster Krawler joints at the axle connection and a Pro Flex Joint at the frame connection for the quietest ride quality out of any suspension system on the market.
This system features the best in class cross over angles and ground clearance. The rear suspension features adjustable anti-squat so you can dial in your JK's suspension to your liking. All of the high clearance lower control arms are made from 2" solid alloy steel and built for abuse. Like all other JK Long Arm Systems the rear axle has been moved back 1" to allow for greater clearance between the tire and factory sliders for Rubicon Owners. This system is completely upgradeable to coil overs and comes with our exclusive Abuse Proof Lifetime Warranty on all hard parts!
Features:
- Excellent Highway Ride and Handling
- Unbelievable Off-Road Ability
- Versatile 3 Link or 4 Link Front Suspension Geometry
- Independent 3 Link Rear Conversion (100% Bind Free Suspension)
- Best in Class Ground Clearance and Cross Over Angles
- Adjustable Rear Anti-Squat
- Fully Adjustable Components
- High Steer Upgrade w/ Off-Road Pro Drag Link
- Long Travel Functional Multi Rate Coil Springs
- Repositions the Rear Axle Back 1"
- 37" Tires (OEM Fenders)
- Up to 40" Tires (Flat Fenders)
- Abuse Proof Lifetime Warranty on All Hard Parts
- Upgradeable to any other Rock Krawler System

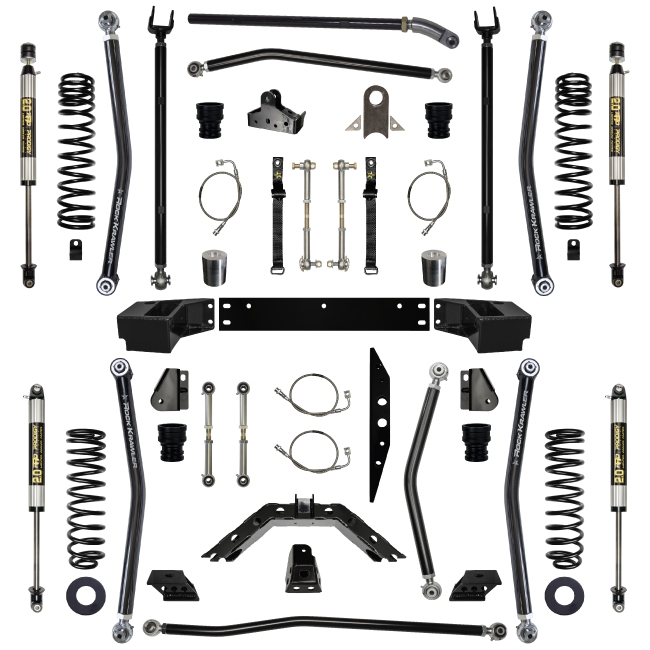

Includes:
- (4) 2.0 RRD smooth body shocks
- (4) Long travel functional multi rate coil springs
- (4) High clearance-adjustable lower control arms made of 2.0" solid alloy steel
- (2) Double adjustable track bars made from 1.5" solid alloy steel
- (4) Long arm mounts and cross member made from 1/4" thick laser cut steel
- (3) High misalignment adjustable upper control arms made from 1.625" solid alloy steel
- (1) Rear independent 3rd link mount made of 1/4" thick laser cut steel
- (1) Weld on rear axle truss with adjustable anti-squat
- (1) Front and rear track bar relocation bracket made from thick laser cut steel
- (1) Off-Road pro drag link
- (1) Heavy duty passenger side axle mount
- (1) Adjustable front sway bar disconnects
- (2) Rear extended sway bar links
- (4) Long travel stainless steel brakes
- (2) Rear coil spring degree wedges
- (2) Front spring retainer clips
- hardware and detailed instructions
Notes:
- Welding of the Rear Cradle, Rear Third Link Mount, Front and Rear Long Arm Mounts is required.
- Removal of the OEM lower control arm mounts front and rear is required.
- Removal of the front upper control arm mount on the driver side is required.
- Minor exhaust rerouting required before the collector on the driver's side. This is recommended to be done prior to the suspension system being installed.
- Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up.
- We typically recommend 3.5" of back spacing on rims for 37"/38"/40" tall tires.
