Synergy Jeep JK Front Track Bar & Sector Shaft Brace Kit

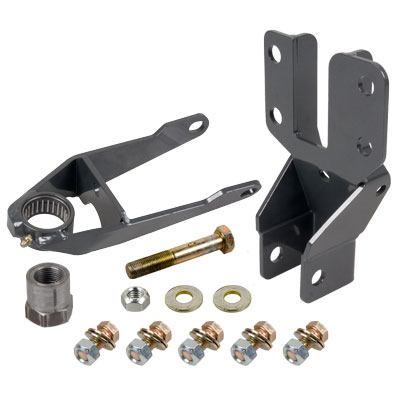

Kit Includes:
- (1) 8069-01 - Front Track Bar Brace
- (1) 8069-02 - Sector Shaft Brace

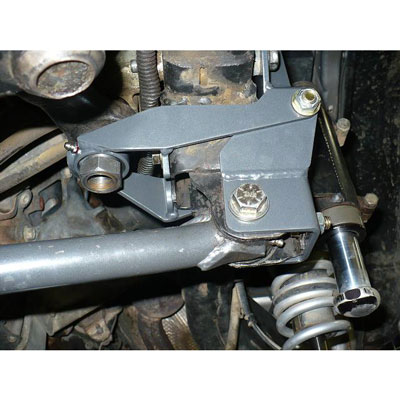

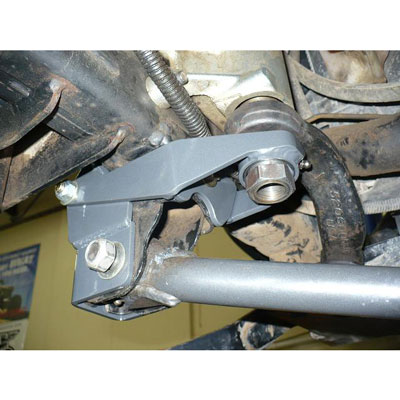

8069-01 - Front Track Bar Brace Details:
- Bracket designed to distribute the increased load the track bar bracket encounters on a lifted Jeep
- Added track bar bracket thickness prevents the track bar bolt from ovalizing out the stock mount
- Bolt on fix for those who already have an ovalized track bar bracket bolt hole
- Laser cut and CNC bent from 3/16" high strength steel
- Grey powder coat finish for maximum corrosion resistance
- Bolt on installation
8069-01 - Front Track Bar Brace Includes:
- (1) Front Track Bar Brace
- (1) 9/16-12 UNC 3.25" long bolt
- (1) 9/16-12 UNC Stover Nut
- (2) 9/16" Flat Washers
- (2) 7/16-14 UNC 1" Bolt
- (4) 7/16 Flat Washers
- (2) 7/16-14 UNC Stover Nuts
- (1) M14 x 2.00 Stover Nut
- (1) M14 x 2.00 x 80mm Hex Head bolt F911

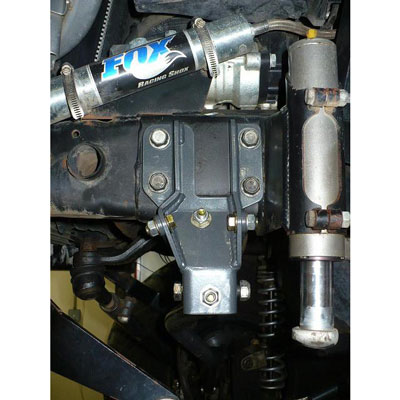

8069-02 - Sector Shaft Brace Details:
- Modular bracket designed to work in conjunction with 8069-01 Front Track Bar Brace to eliminate drivers side frame flexing and sector shaft deflection.
- Integrated bracket design adds strength to both the factory track bar bracket and factory steering box.
- Laser cut and CNC bent from 3/16" high strength steel
- Grey powder coat finish for maximum corrosion resistance.
- High quality grease able bearing
- Bolt on installation
8069-02 - Sector Shaft Brace Includes:
- (1) Sector Shaft Brace
- (3) 7/16-14 UNC x 1" long bolt
- (3) 7/16-14 UNC Stover Nut
- (6) 7/16" Flat Washer
- (1) Pitman Arm Stud
IMPORTANT: The 8069 Synergy Jeep JK Front Track Bar & Sector Shaft Brace Kit is ONLY compatible with the 8075 Synergy Jeep JK Adjustable Front Track Bar. Synergy does not guarantee compatibility with any other track bar including the factory OEM trackbar.
Optional Add On: TrackBar
Features
- Bent to clear most aftermarket differential covers
- Retains factory track bar mounting bolts & hardware
- Made from high quality 1-1/4" 1018 CR solid round bar stock
- Allows centering of front axle when running a suspension lift
- Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance
- Heavy duty heat treated chromoly rod end at axle end
- Will fit 0-7" lifts (Front track bar relocation bracket recommended for lifts over 3")
- Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing control arm mounting bolt
- Features Synergy Dual Durometer Bushings (DDB) with TeflonĀ® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
- 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
