Rock Krawler 1.5" Flex System (4dr)
Features:
- Complete Bolt in System
- Excellent Highway Ride
- Improved Off-Road Ability
- Caster Correcting High Clearance Front Lower Control Arms
- Long Travel Functional Multi Rate Coil Springs
- 33" Inch Tires (OEM Fenders)
- PRO Front Sway Bar Disconnects/Extended Links
- Abuse Proof Lifetime Warranty on All Hard Parts
- Upgradeable to any Rock Krawler System

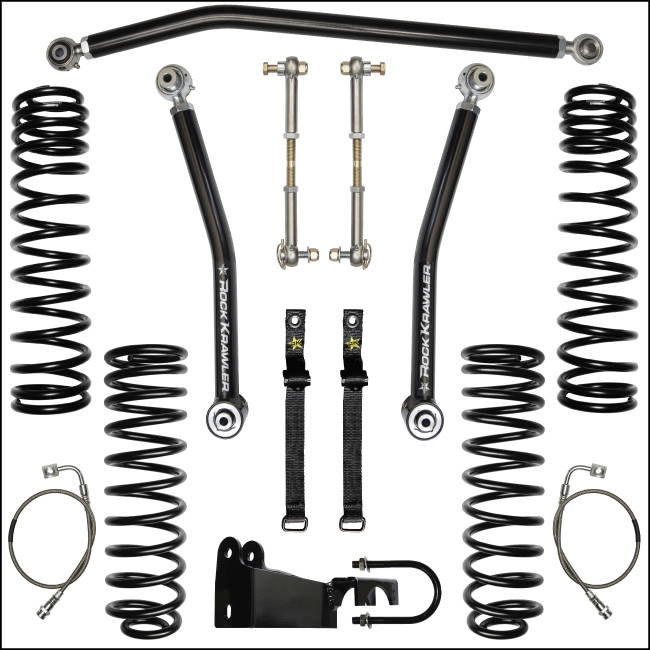

Includes:
- (4) Long travel functional multi rate coil springs
- (1) Double adjustable front track bar made from 1.5" solid alloy steel with Anti-Wobble Joint
- (2) High clearance adjustable front lower control arms made of 1.625" solid alloy steel
- (1) Adjustable front sway bar disconnects
- (1) Pair of front sway bar straps
- (1) Rear track bar relocation bracket
- (2) Long travel front stainless steel brake lines
- hardware and detailed instructions.
Notes:
- We typically recommend 4.5" of back spacing on rims for 12.5" wide tires.
- For 2012 and newer models an aftermarket front driveshaft with 2" O.D. steel tubing is recommended, but not required.
Shock Notes
RRD Spec'd Prodigy Shocks
- Sport Tuned 2.0 RRD Spec'd Prodigy Shocks
- Front: RRD02054
- Rear: RRD02055
- Note: *Requires 2" bump stops front and rear
- Sport Tuned Remote Reservoir 2.0 RRD Spec'd Prodigy Shocks
- Front: RRD02054RR
- Rear: RRD02055RRD, RRD02055RRP
- Note: *Requires 2" bump stops front and rear
Bilstein Shocks
- Front: 24-146708
- Rear: 24-146715
- Note: *Requires 1" bump stops front and rear
If choosing a brand of shock that we have not provided a part number for, match your shock choice as closely as possible to these generic length recommendations below.
(We can not ensure that the valving profile in your shock choice will pair well with our kits. This is why we recommend using our RRD Racing shocks or the provided Bilstein part numbers)
Generic Front Shock
Recommendation with 2" bump stops - 15" Collapsed to 26" Extended
Generic Rear Shock
Recommendation with 2 " bump stops - 15" Collapsed to 25" Extended
