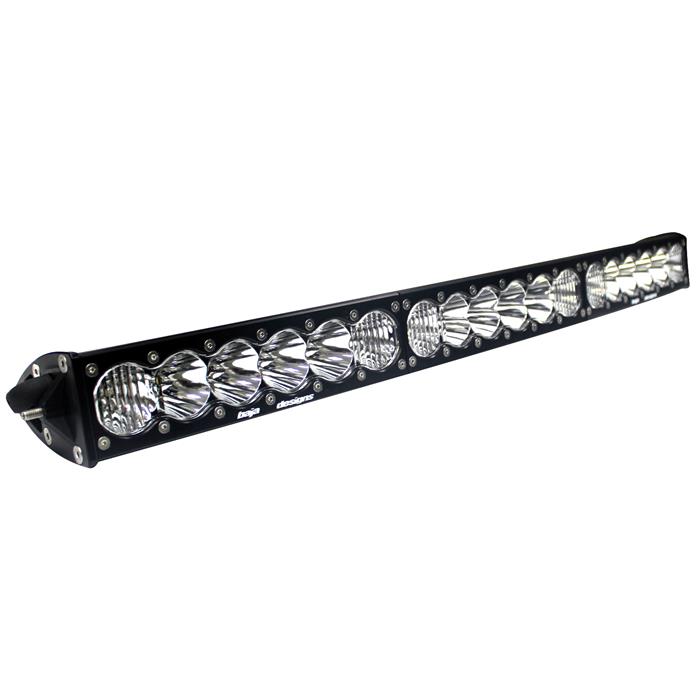

Baja Designs 30" OnX6 Arc LED Light Bar
The NEW OnX6™ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
In addition, the OnX6™ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
The OnX6™ Arc LED Light Bar is BRIGHTER. BOLDER. BETTER.
Features:
- Satisfaction Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 19,350 Utilizing 18 Cree XM-L2 LEDs
- Wattage/Amps: 189W / 15.75A
- Dimensions: 30" x 4.29" x 2.69"
- Weight: 11.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Exceeds MIL-STD810G requirements:
- Low Temperature Test
- High Temperature Test
- Temperature & Humidity Test
- Thermal Shock Cycling Test
- Dust Test
- Random Vibration Test
- Mechanical Shock Test
- Low Pressure Test
- Drip Box Water Test
Includes:
- OnX6 30” Arc LED Light Bar
- Mounting Brackets
- Order wiring harness in related products if needed.
Patterns:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
- High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
