Baja Designs LP6 Sport LED Light

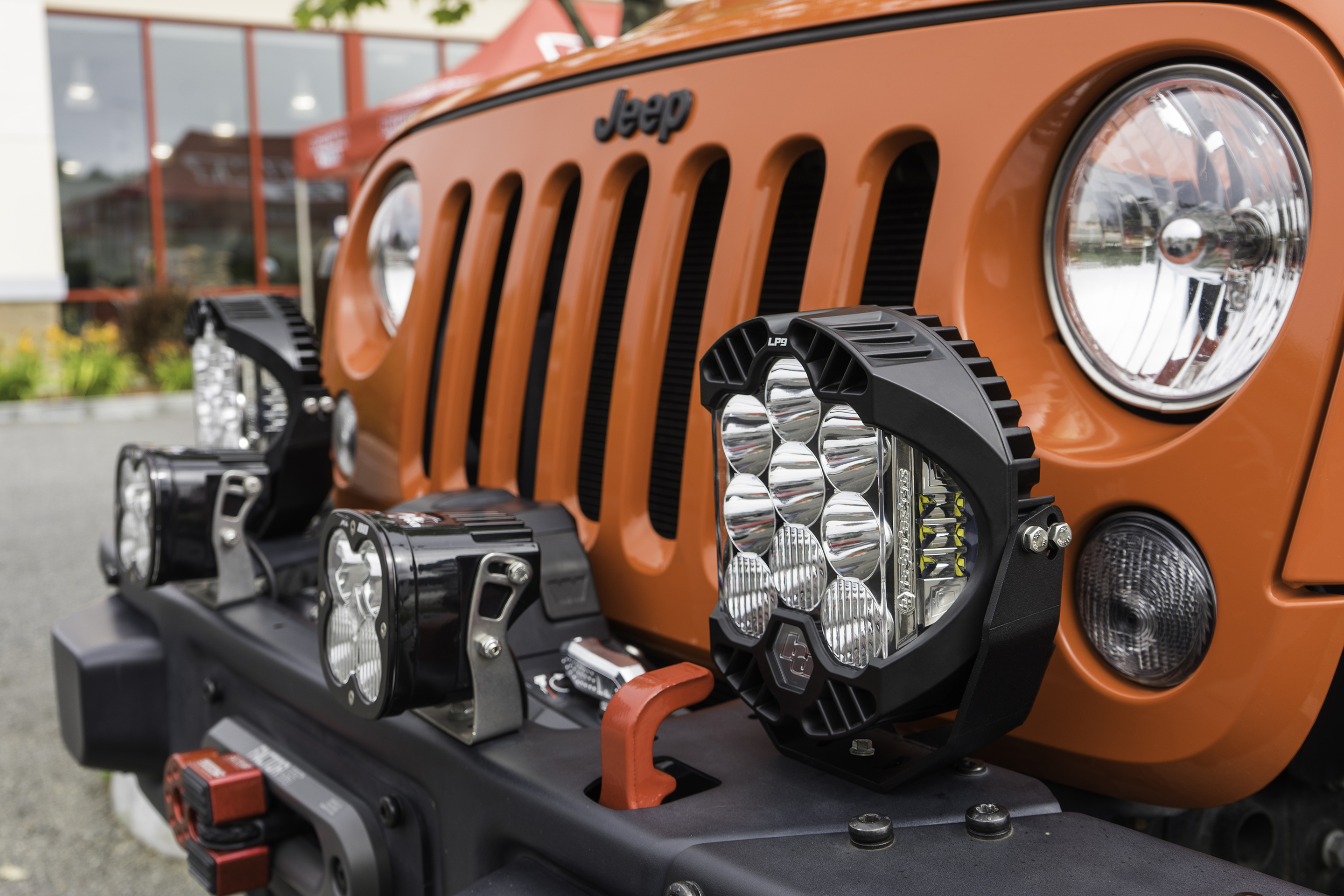

The LP9 Sport is perfect for enthusiasts that want a full size light with modern styling and advanced features. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200° spread of usable light.

The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,280 lumens at 21 watts.

As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions

Features:

• Satisfactions Guarantee – 30 Day Money Back
  Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService® – Replaceable Lenses And Optics
• ClearView® – All The Light, Right Where You Need It.
• MoistureBlock™ – Waterproof, Rain Proof, Submersible
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

• Forward Projecting Lumens: 6,500 Utilizing 9 LEDs
• Forward Projecting Wattage/Amps:  61W / 4.6A
• IPT Lumens: 2,280 Utilizing 6 LEDs
• IPT Wattage/Amps: 21W / 1.52A

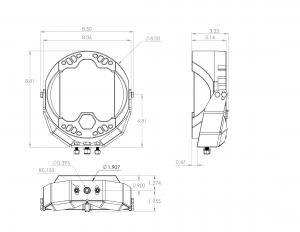

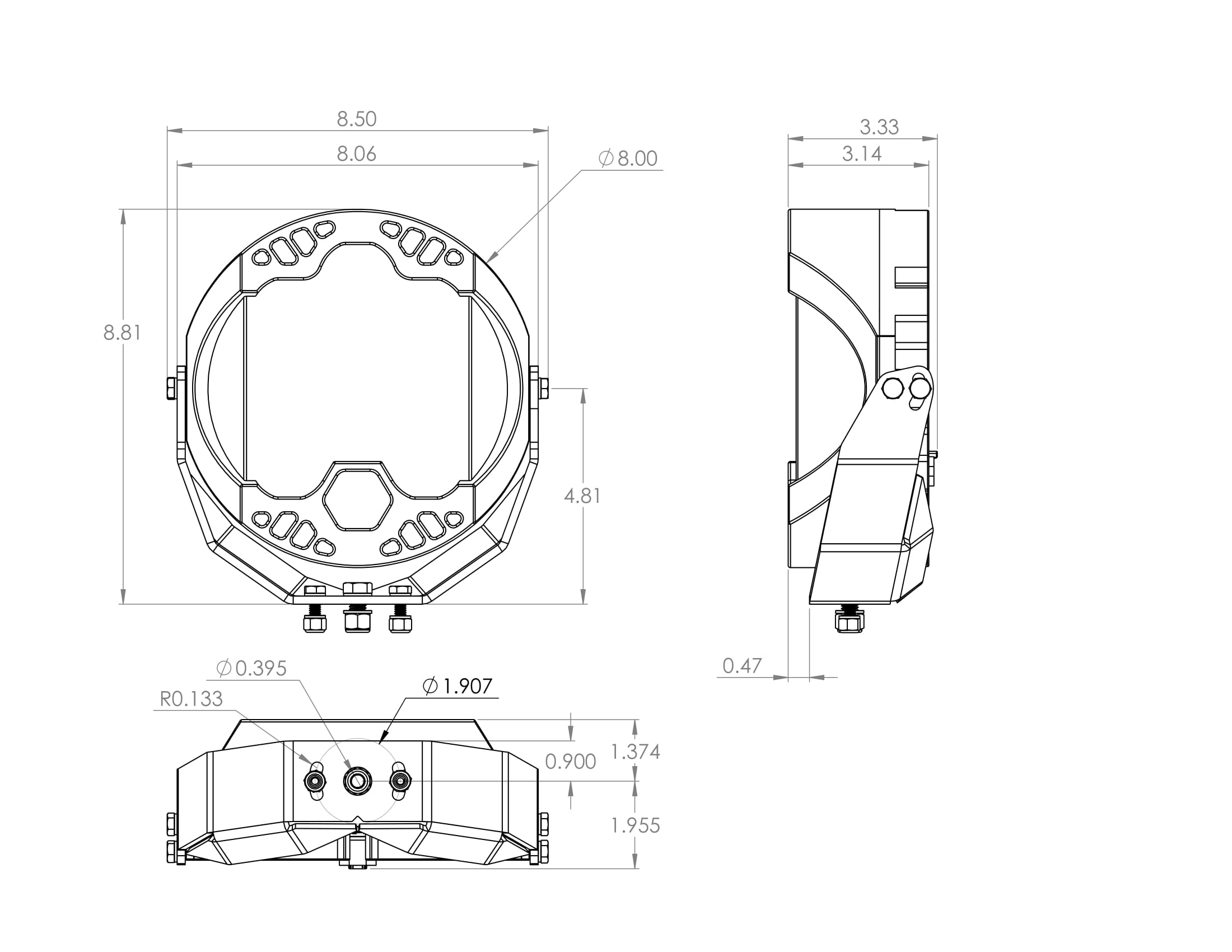

• Dimensions: 8" Height / 3.25" Depth
• Weight: 6.5lbs
• LED Life Expectancy: 49,930 Hours
• Front Lens:  Hardcoated Polycarbonate
• Housing:  Hard Anodized Machined Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof up to 9ft & Pressure Washable)
• IK10 Compliant (Mechanical Impact Testing)

Exceeds MIL-STD810G requirements:

• Low Temperature Test
• High Temperature Test
• Temperature & Humidity Test
• Thermal Shock Cycling Test
• Dust Test
• Random Vibration Test
• Mechanical Shock Test
• Low Pressure Test
• Drip Box Water Test

Includes:

• LP9 Sport LED Light
• Mounting Bracket

Part Numbers

• 350013 | Driving Pattern, Amber

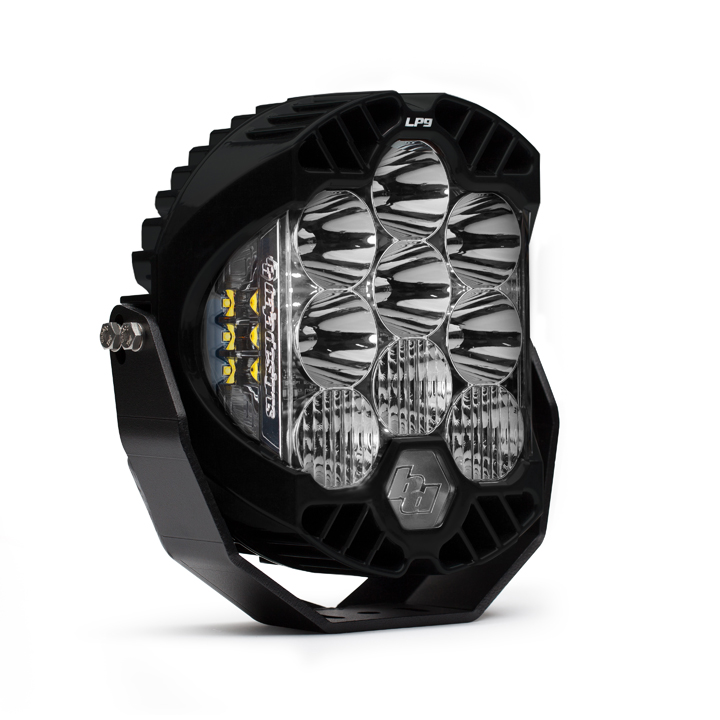

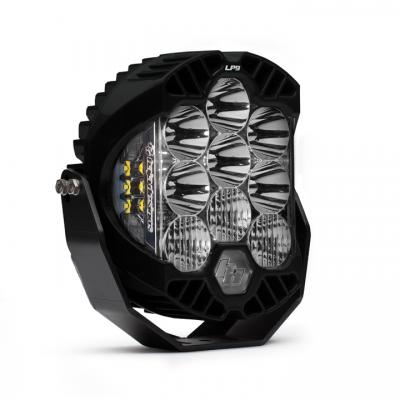

• 350003 | Driving Pattern, White

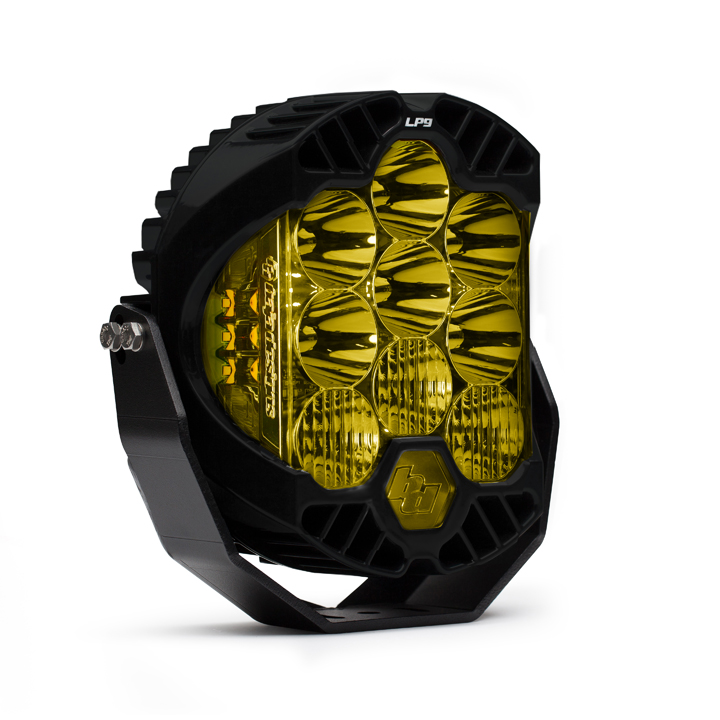

• 350011 | Spot Pattern, Amber

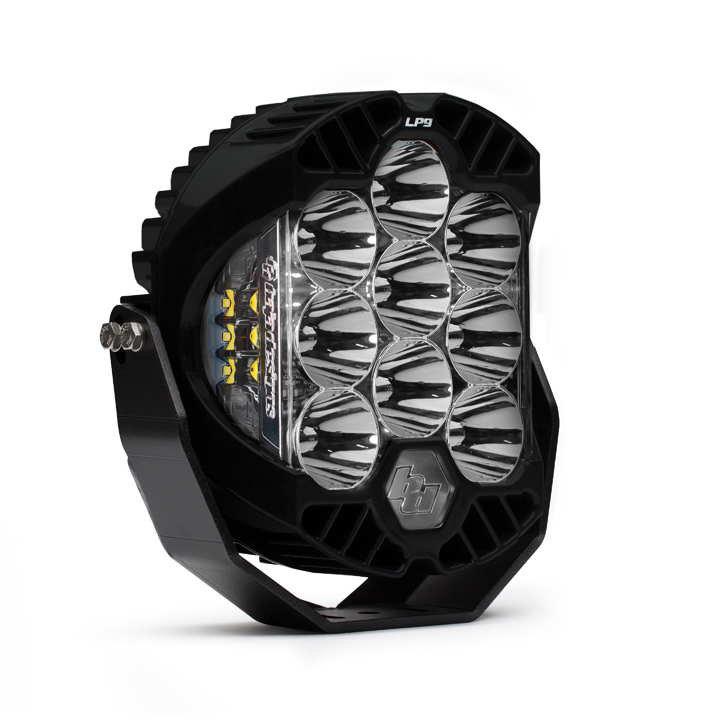

• 350001 | Spot Pattern, White

Patterns:

• Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (10°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
• Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

These zones have been designed by Baja Designs: The Scientists of Lighting.

Zone 1 - Dust/Fog: This zone illuminates the area directly in front of the vehicle.  Mounting these lights low on the bumper eliminates glare from dust and fog.

Zone 2 - Cornering: This zone provides cornering light which is necessary to drive comfortably at speed.  By toeing these lights out 10°-15°a smooth field of light is achieved, eliminating the feeling of tunnel vision.

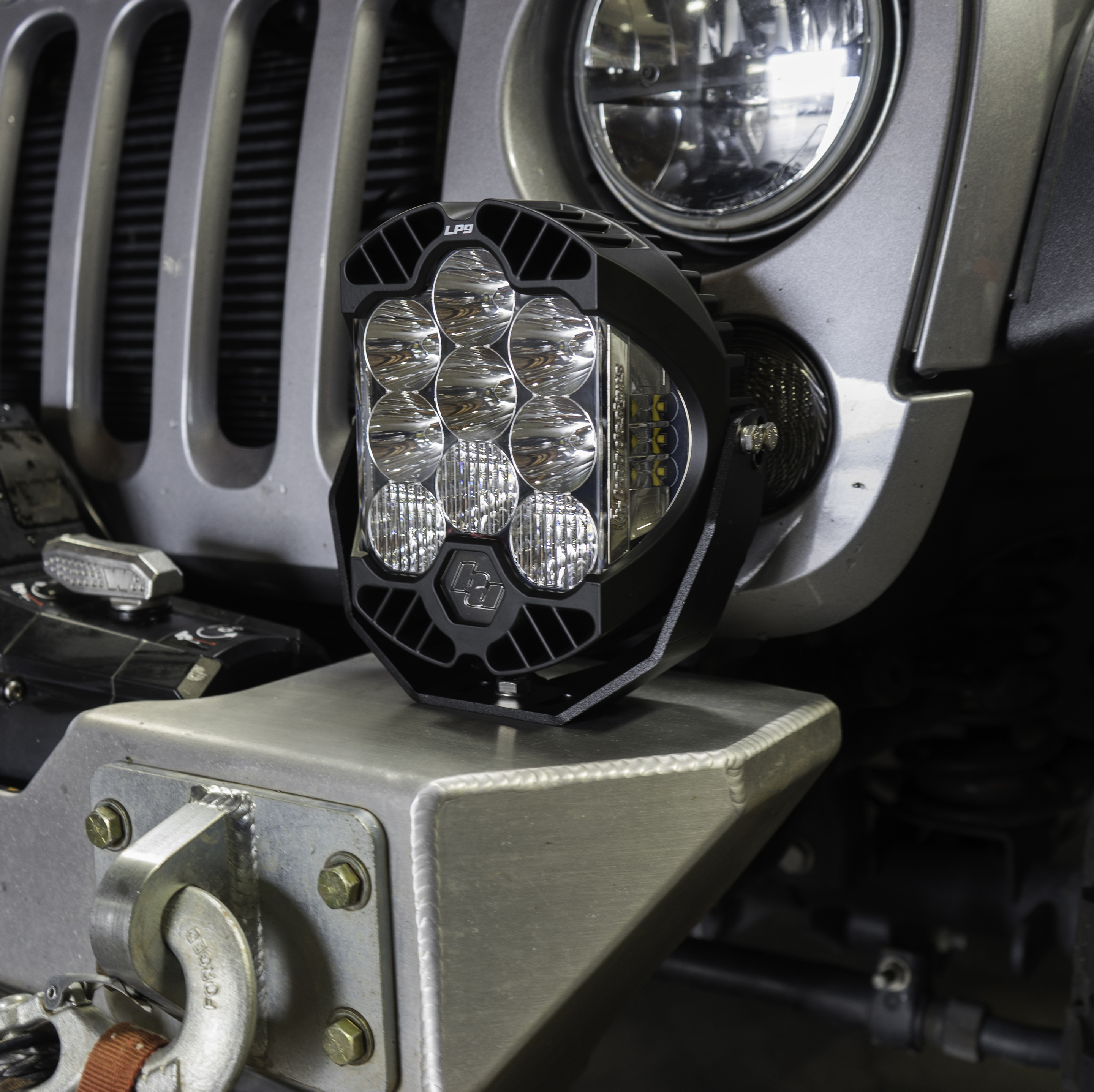

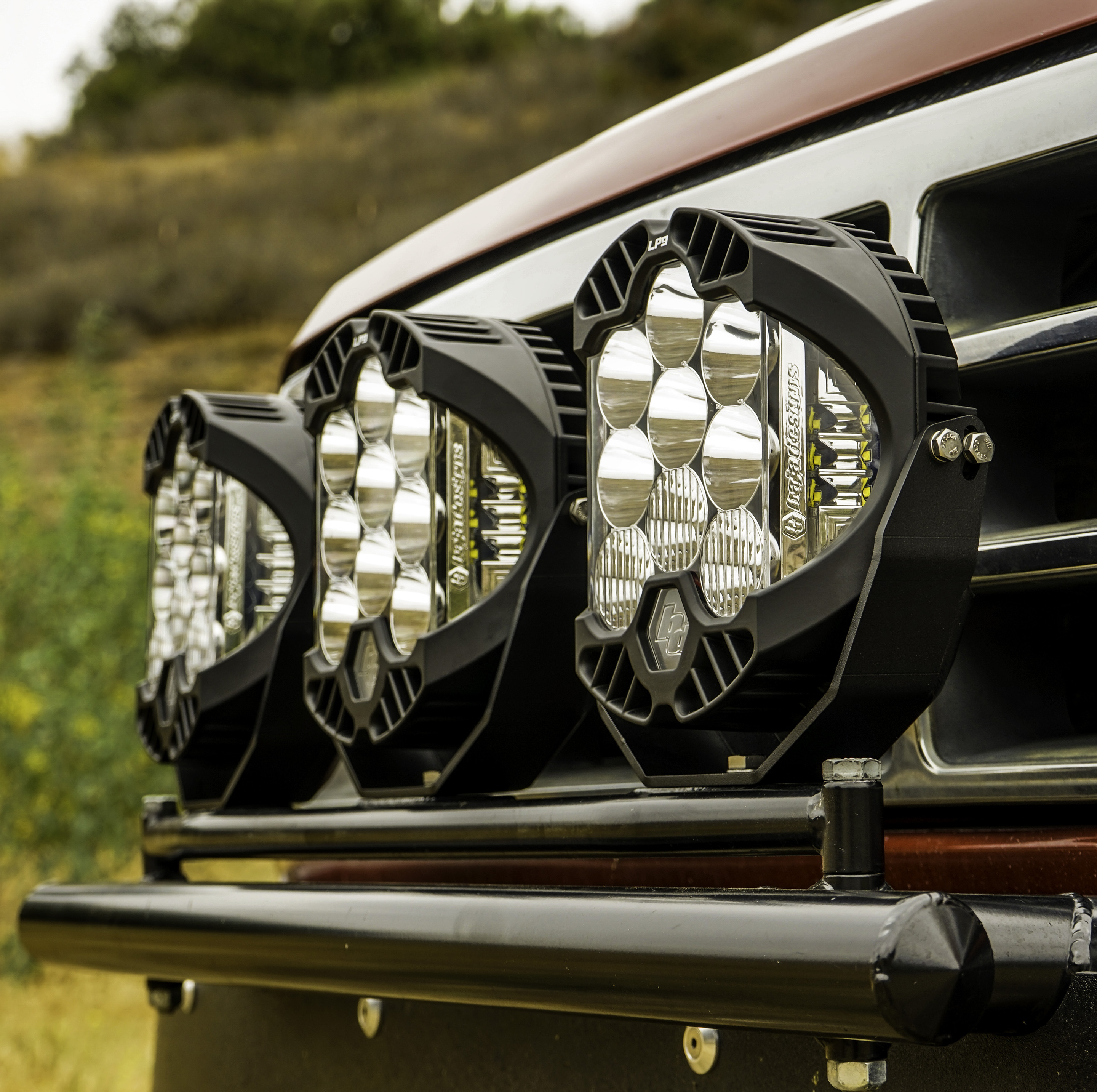

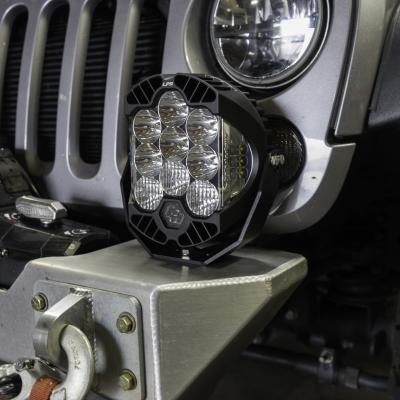

Zone 3 - Driving Combo: This zone is your primary driving light.  These lights are mounted in the middle of the front bumper to avoid glare off of the hood or from dust and fog in front of the vehicle.

Zone 4 - Spot: This zone is your first level of long distance lighting. Lights intended for this zone will give you the distance needed to travel at speed.  Combined with zone two lighting, a smooth transition is achieved creating less stress on your eyes.

Zone 5 - Racer Edition Spot: This zone is necessary for triple digit speeds or wanting to see miles down the road. This is the only forward projection pattern we recommend mounting along your roofline.

Zone 6 - Dome Lighting: This zone is used for wheel well lighting.  This light is perfect for truck, jeep, buggy and UTV applications.

Zone 7 - Flood: Excellent work light or “scene light” with an extremely smooth 60° pattern.  This pattern is not suitable for forward projection applications.

Zone 8 - Backup Lighting: This zone illuminates the area directly behind the rear of the vehicle.  It is recommended that these lights be mounted on your rear bumper or cargo rack.
