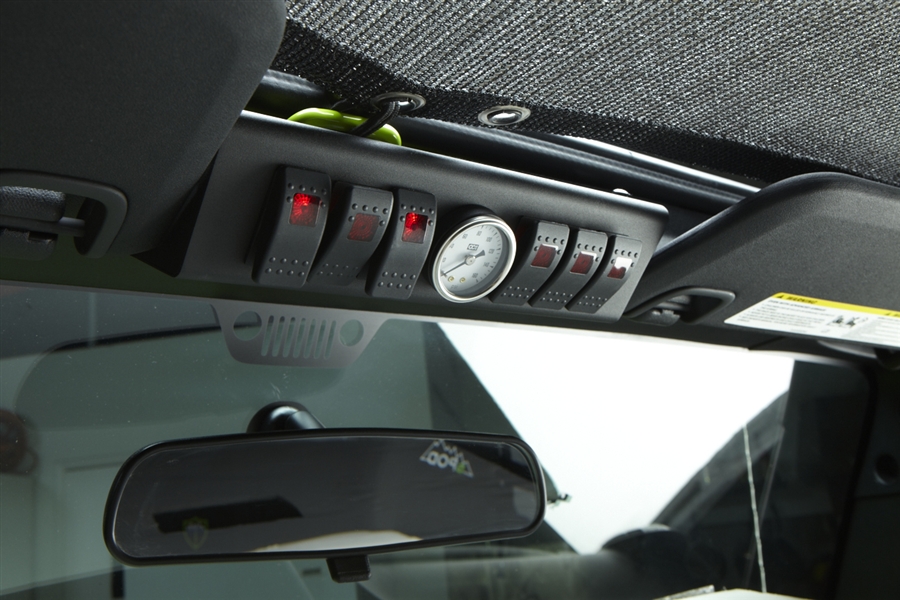

sPOD 09-16 JK 6 Switch w/ Air Gauge sPOD & Source System

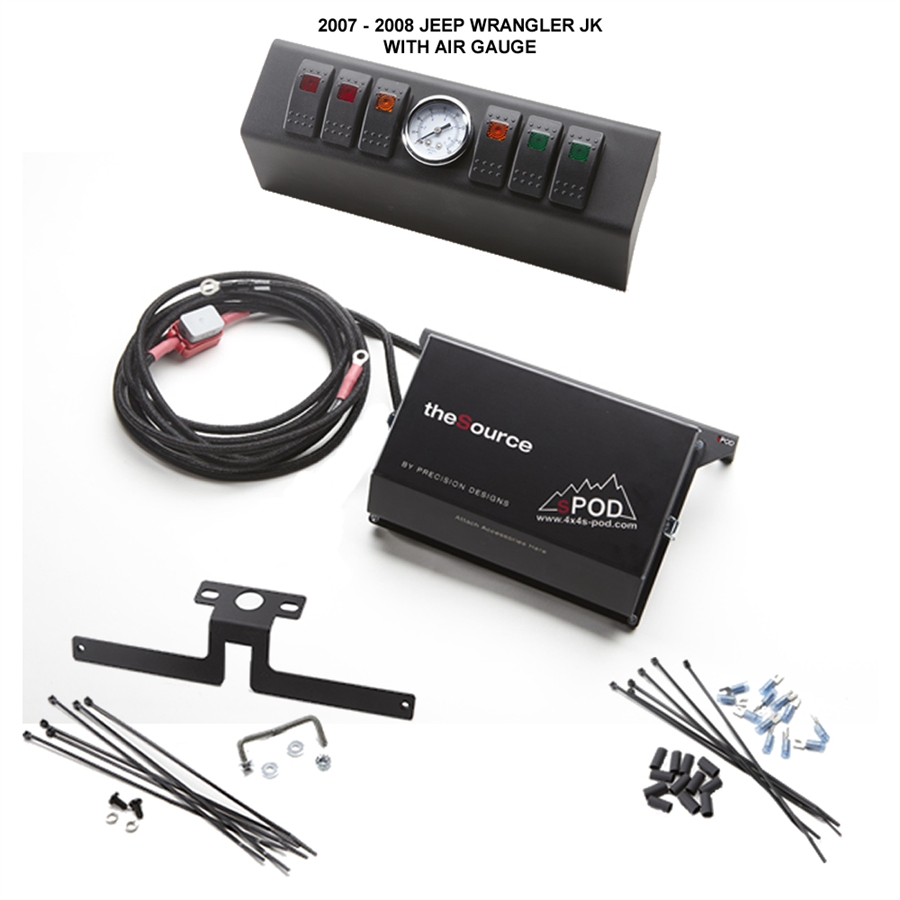

Each system includes the following:
- All required mounting brackets and hardware.
- System will come pre-wired ready to install.
Included:

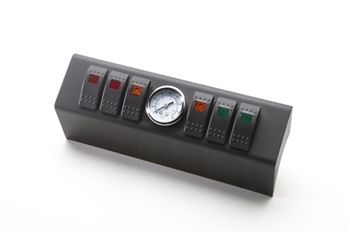

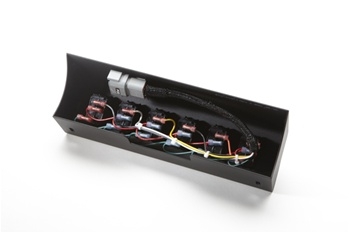

Switch panel, six single light Contura switches, 2 Red, 2 Amber and 2 Green actuators (installed and pre-wired), two piece Wire Harness set with 8 multi color leads utilizing 18 gauge wires. Each end has an automotive connector made by Deutsch. Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10' of high pressure connection line.
NOT RECOMMENDED FOR CUSTOM ROCKERS. Switches do not have lower pilot light.
All wires are wrapped in high temp abrasion resistant nylon braided sleeving.

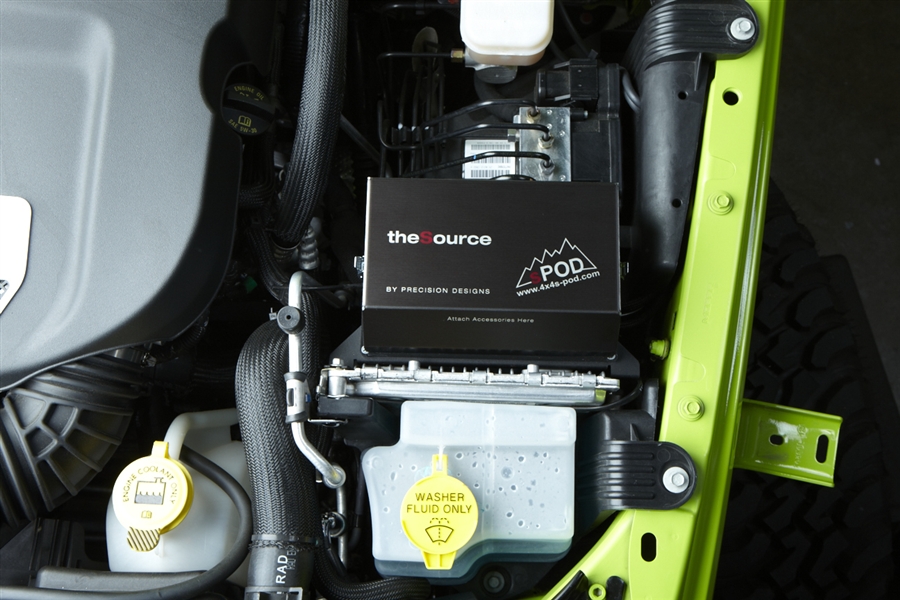

The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from "field collapse"
- Inline 50amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 10.6VDC and cuts-back in at 12.4VDC so there is enough juice to start your vehicle in case you left an accessory on!!!
- Fuse for LVCO which can be removed to bypass the LVCO
- Mounting bracket for Jeep Wranglers
Remote Control Power Module Note: Compatible with over 80 manufactures. Product requirements: iOs 6.3 or newer and Android 4.3 or newer. The app will only work with these versions. Does NOT work with Samsung Phones or tablets.
