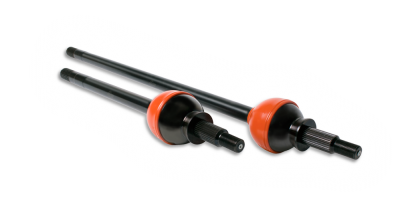

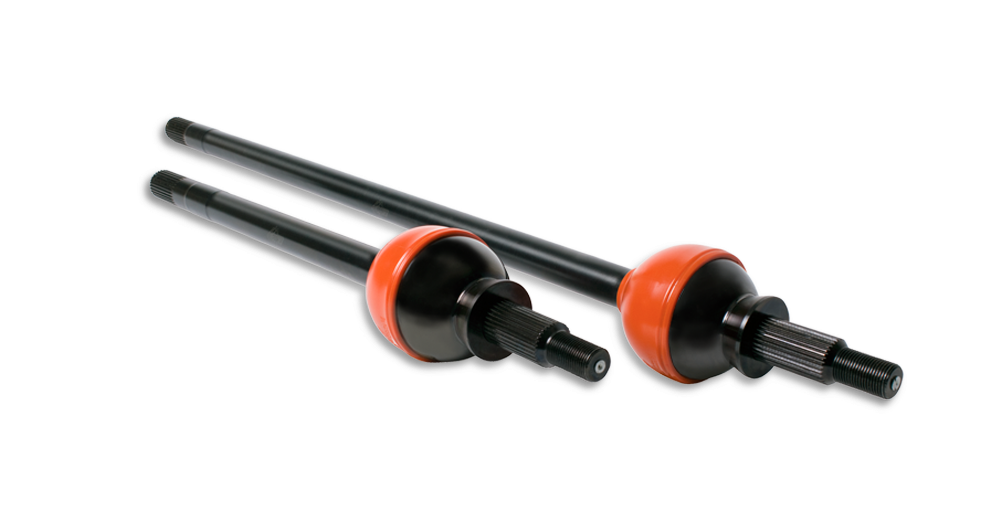

RCV Performance Ultimate Dana 30 30T CV Axle Set for Jeep JK
RCV Performance Ultimate CV Axles simply replace your Jeep JK's weak Dana 30 30T U-joint axle shafts with a high-strength constant velocity design. Tests prove Ultimate CV Axles to be twice as strong as OEM axle shafts, and they're just as tough at a straight angle as they are at extreme angles - where U-joints are weakest. Ultimate CV Axles also eliminate U-joint binding to allow smooth transfer power to the ground. Even if you have big tires and big power there are no worries. Ultimate CV Axles are low maintenance and operate with a smoothness you can feel - whether off road or on the street. And we back it all with a "No Questions Asked" limited lifetime warranty.
Axle set includes right and left CV axle shafts, outer stubs, SST seals and installation tool, installation instructions, synthetic moly grease, and installation hardware. Black oxide coating is standard. Optional nickel plating is available for extra corrosion resistance in salty environments
Fitment:
- Jeep Wrangler JK 07+ Dana 30 (non Rubicon Models)
Specifications:
- Axle Model: Dana Super 30
- Type: Unit Bearing
- Modified Inner Spline: 30
- OEM Outer Spline: 32
- RCV Inner Spline: 30
- RCV Outer Spline: 32
- OEM Left Inner Axle Length: 18.75"
- OEM Right Inner Axle Length: 34.44"
- OEM Outer Stub Axle Length: 6.25"
- Warranty Voided: Over 35" Tire
- Boot Technology: Joints Sealed with RCV Bootless Technology
To ensure RCV axles will fit your vehicle, please verify your current axle shaft specifications match the OEM specifications listed above. Custom splines are available upon request
RCV Ultimate CV Axle Exploded View
